HYOID BONE ANATOMY

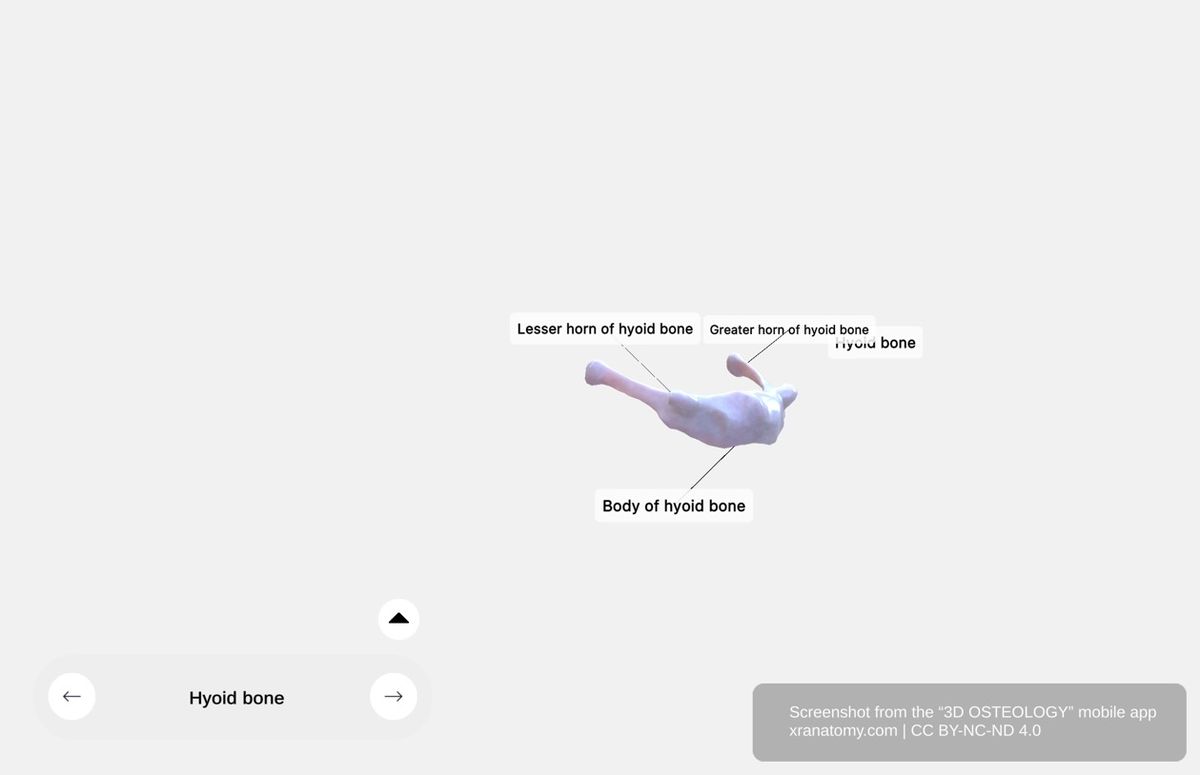

Hyoid Bone - General Structure, The hyoid bone is U-shaped and consists of a body, two greater cornua, and two lesser cornua. Preview from the app. Download 3D OSTEOLOGY for full 3D control—multiple views, x-ray mode, and unlimited zoom.
TABLE OF CONTENTS
BODY

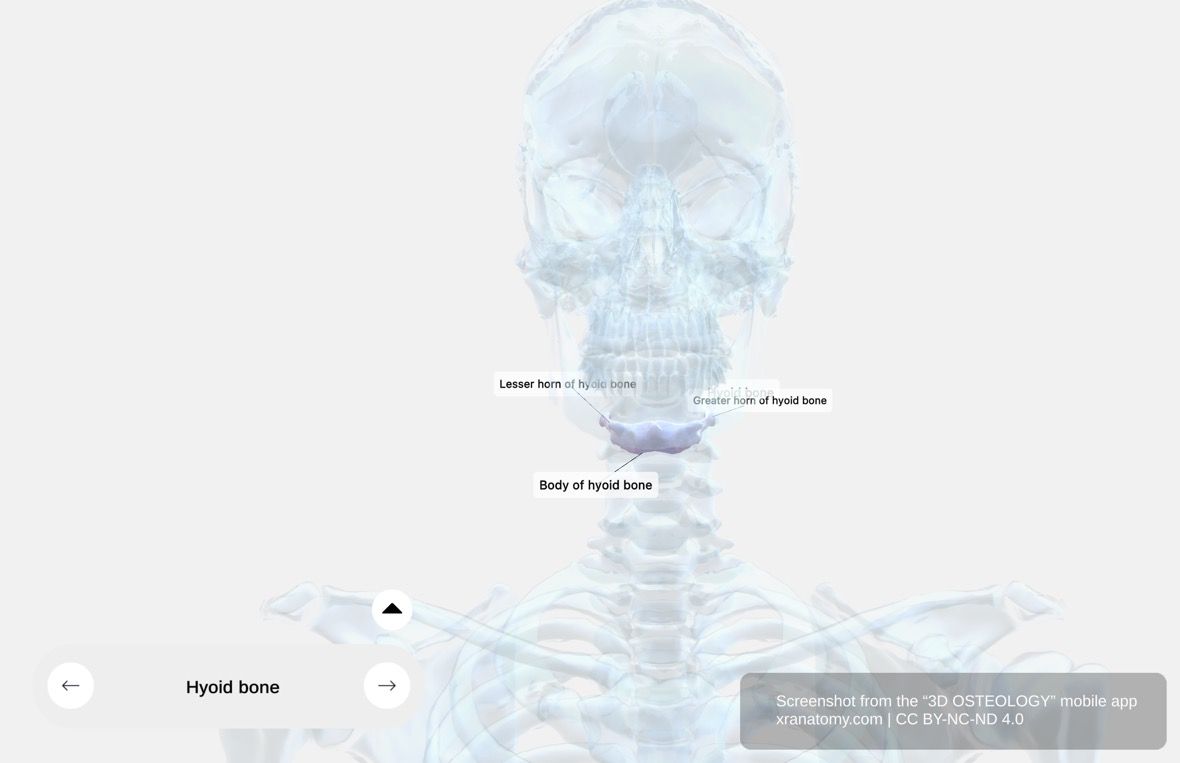

Hyoid Bone - X-Ray View, Preview from the app. Download 3D OSTEOLOGY for full 3D control—multiple views, x-ray mode, and unlimited zoom.
- Quadrilateral in form
- Anterior surface is convex, directed forwards and upwards
- Crossed by a transverse ridge
- Provides attachment points for several muscles
LESSER HORNS (CORNUA)
- Small conical eminences
- Located at the junction of the body and the greater horns
- Connected to the body by fibrous tissue, sometimes by joints
- Apex attaches to the stylohyoid ligament
GREATER HORNS (CORNUA)
- Project backwards from the body
- Flattened structure
- Provide attachment points for several muscles
BIBLIOGRAPHY
1. Henry G, Warren HL. Osteology. In: Anatomy of the Human Body. 20th ed. Philadelphia: Lea & Febiger; 1918. p. 129–97.
