3D CONTENT
3D OSTEOLOGY
3D LOWER LIMB

BONES OF THE FOOT ANATOMY

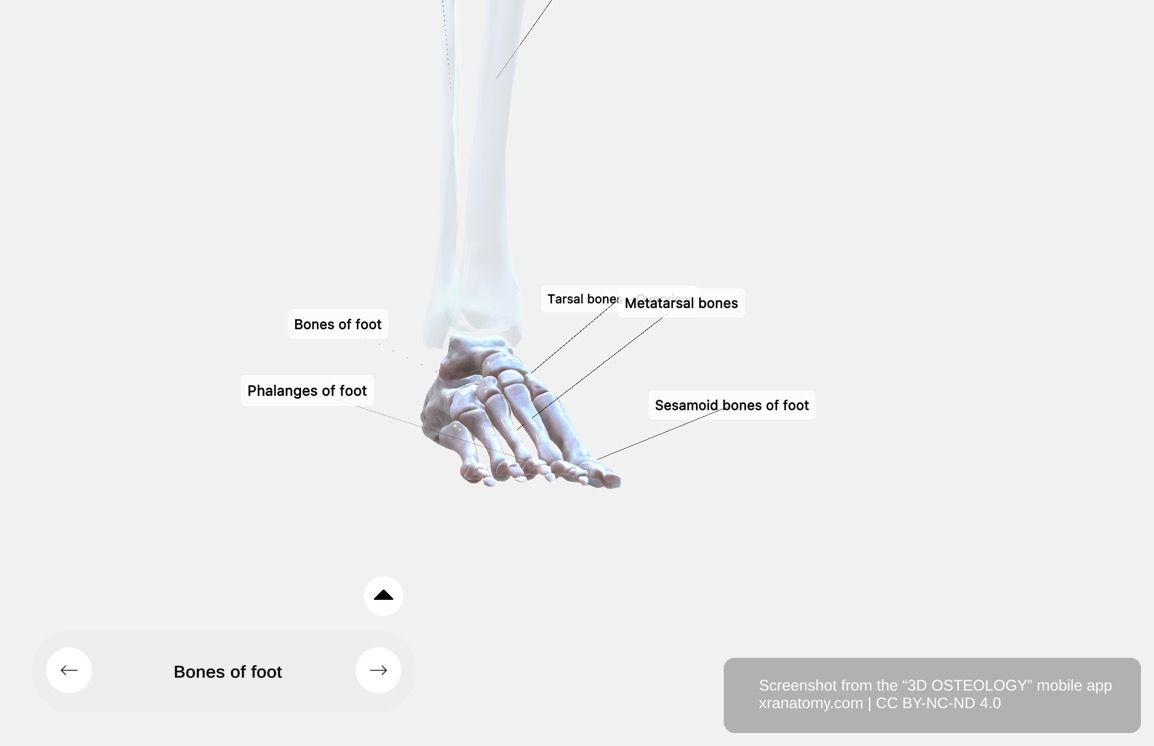

Bones of the foot anatomy 360-degree interactive viewer showing tarsal bones, metatarsal bones, and phalanges

Bones of the Foot - Overview, Preview from the app. Download 3D OSTEOLOGY for full 3D control—multiple views, x-ray mode, and unlimited zoom.

TABLE OF CONTENTS

GENERAL CHARACTERISTICS

  • The bones of the foot are organized into three main groups that work together to provide structure and functionality
  • Tarsal bones: Form the posterior section of the foot
  • Metatarsal bones: Create the framework of the midfoot
  • Phalanges of the foot: Form the toes

TARSAL BONES

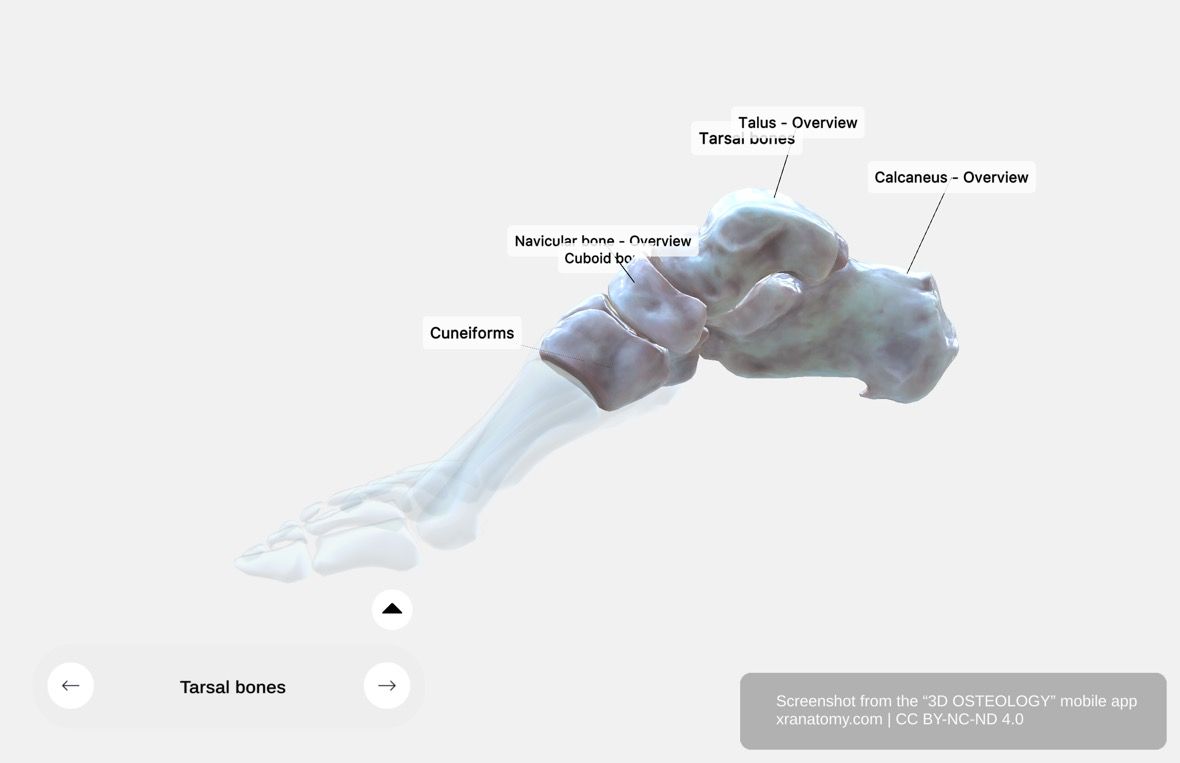

Tarsal bones 360-degree viewer showing seven tarsal bones including talus, calcaneus, navicular, cuneiform, and cuboid bones

Tarsal Bones, Preview from the app. Download 3D OSTEOLOGY for full 3D control—multiple views, x-ray mode, and unlimited zoom.

  • Total: Seven tarsal bones
  • Form the posterior section of the foot
  • Shape the foot's structure and enable its functional dynamics
  • Provide stability and support during movement

Talus

  • Supports the tibia
  • Rests on the calcaneus
  • Articulates with:
    • Medial and lateral malleolus on either side
    • Navicular bone in front

Calcaneus

  • Largest tarsal bone
  • Located at the lower and posterior part of the foot
  • Transmits the body's weight to the ground
  • Forms a strong lever for calf muscles
  • Located on the medial side of the tarsus
  • Positioned between:
    • Talus behind
    • Cuneiform bones in front

Cuneiform Bones

  • Three wedge-shaped bones
  • Articulate with:
    • Navicular bone behind
    • First, second, and third metatarsal bones in front

Cuboid Bone

  • Located on the lateral side of the foot
  • Positioned between:
    • Calcaneus behind
    • Fourth and fifth metatarsal bones in front

METATARSALS

  • Total: Five metatarsal bones
  • Create the framework of the midfoot
  • Numbered I to V from medial to lateral

PHALANGES OF FOOT

  • Total: Fourteen phalanges
  • Arrangement:
    • Three for each toe (proximal, middle, distal)
    • Two for the great toe (proximal, distal)

BIBLIOGRAPHY

1. Henry G, Warren HL. Osteology. In: Anatomy of the Human Body. 20th ed. Philadelphia: Lea & Febiger; 1918. p. 129–97.
